APPLICATION

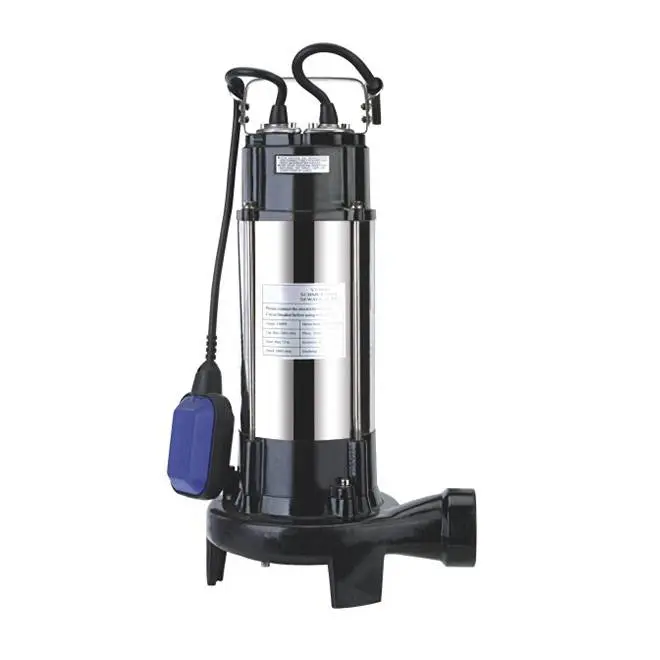

V-D seriesSewage Pump with cutter is an ideal machine for draining sweage.A highspeedroatating cutter is assembled at the inlet hole of the pump,make it easy to cutoff long firm sundries cintained in the sewage,so as to avoid the impeller isblocked by the entanglement.It is suitable for draining sewage insanitation,factory,mine and familly.The float switch can automatically controlon and off with the change of the liquid level.The protector in the motor canautomatically cut off the power when it overheated or overcurrented,thusguarantee the security and reliability of pump’s run even in the atrociousenvironment.
OPERATING LIMITS
· Max.medium temperature+40°C
· Max.ambient temperature+40°C
· PH level from 4-10
· Maximum passage for suspended solids ∅50
· Voltage fluctuation range:0.9-1.1 times of the ratedvalue
· lmmersion depth from 0.5m-5m
MOTOR INFORMATION
· Two-pole induction motor
· Single phase/three phase,50/60Hz(on demand)
· Thermal protector for single phase
· Insulation class:B
· Protection class:IPX8
MATERIAL
· Pump body:Cast iron
· Motor housing:Stainless steel
· Impeller:Cast iron
· Motor wire:copper
· Mechanical seal:Graphite&Ceramic
· Shaft:45#steel/stainless steel
