APPLICATION

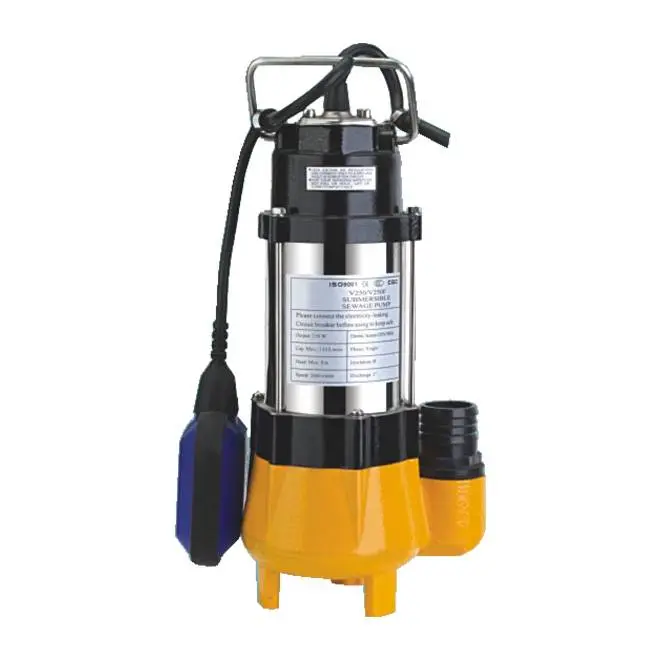

· V- series Sewage Pump can work safely and efficiently athigh flux with the feature of complete heads.
· Anti-clogging impeller with big passage designed cantransfer sewage with big suspend solid and long fiber whose diameter is about15-25 mm;
· It can be automatically on-off if it is assembled withfloat swith. Thermal protector inside pump can automatically shut off the pumpwhen the overheating and overload, to guarantee safe and reliable operationunder hard condition.
OPERATING LIMITS
· Max.medium temperature+40°C
· Max.ambient temperature+40°C
· PH level from 4-10
· Maximum passage for suspended solids ∅45
· Voltage fluctuation range:0.9-1.1 times of the ratedvalue lmmersion depth from 0.5m-5m
MOTOR INFORMATION
· Two-pole induction motor
· Single phase/three phase,50/60Hz(on demand)
· Thermal protector for single phase
· Insulation class:B
· Protection class:IPX8
MATERIAL
· Pump body:Casiron
· Motor housing:Stainless steel
· Impeller:Cast iron
· Motor wire:copper
· Mechanical seal:Graphite&Ceramic
· Shaft:45#steel/stainless steel
