APPLICATION

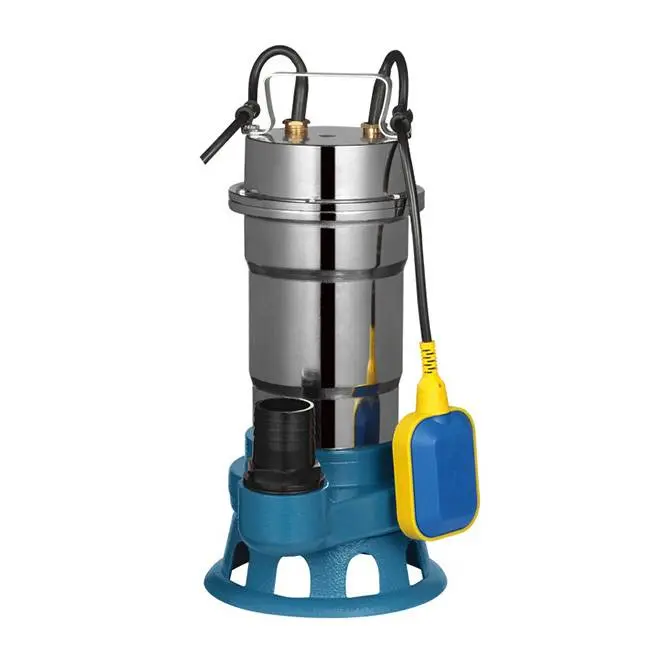

MF series pumpwith open runner impeller, which is specially designed, has super-strongcapccity.So the pump not only won’t be blocked because of sucking in solidparticle and fiber impurity, but also avoid easily spoing because ofsucking-inabrasive grain, especially used to sewage irrigation,constructionsite, coal, mine, metalurgy, dying and textile industry etc.
OPERATING LIMITS
· Max.medium temperature+40°C
· Max.ambient temperature+40°C
· PH level from 4-10
· Maximum passage for suspended solids ∅30
· Voltage fluctuation range:0.9-1.1 times of the ratedvalue
· lmmersion depth from 0.5m-5m
MOTOR INFORMATION
· Two-pole induction motor
· Single phase/three phase,50/60Hz(on demand)
· Thermal protector for single phase
· Insulation class:B
· Protection class:IPX8
MATERIAL
· Pump body:Casiron
· Motor housing:Cast iron
· Impeller:Cast iron
· Motor wire:copper
· Mechanical seal:Graphite&Ceramic
· Shaft:45#steel/stainless steel
