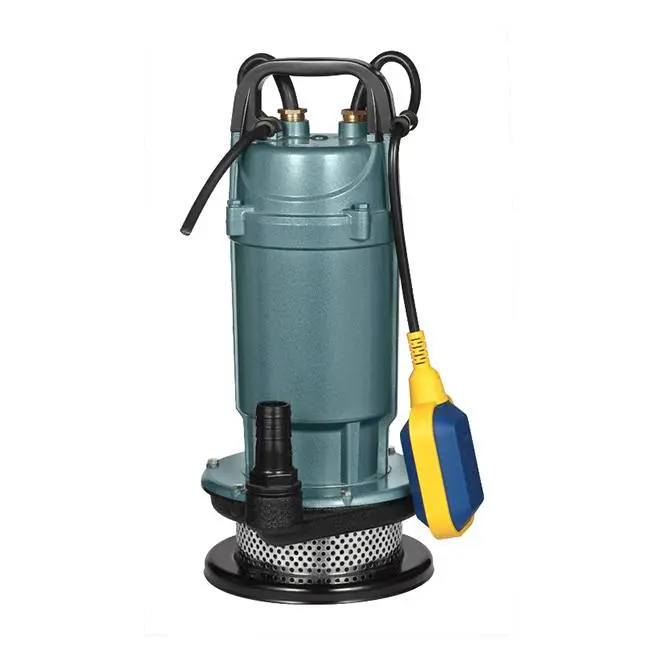

QDX SUBMERSIBLE PUMP

产品详情

APPLICATION

Q(D)X seriessubmersible pump consist of pump, seal and motor, and equipmented withprotection apparatus,

It is designedfor clean water, widely used for drawing water from well, farm irrigation,garden, building construction,

breedingindustry, and daily life. Moreover, it has small volume and light weight, moreeasy to use.

OPERATING LIMITS

·        Max.medium temperature+40°C

·        Max.ambient temperature+40°C

·        PH level from 6.5-8.5

·        Maximum sand content is 01%.Passage of suspendedsolids up   to 0.2mm.

·        Voltage fluctuation range:0.9-1.1 times of the ratedvalue lmmersion depth from 0.5m-5m

MOTOR INFORMATION

·        Two-pole induction motor

·        Single phase/three phase,50/60Hz(on demand)

·        Thermal protector for single phase

·        Insulation class:B

·        Protection class:IPX8

MATERIAL

·        Pump body:Cast iron

·        Motor housing: Aluminum

·        Impeller:Aluminum

·        Motor wire:copper

·        Mechanical seal:Graphite&Ceramis

·        Shaft:45#steel/stainless steel
